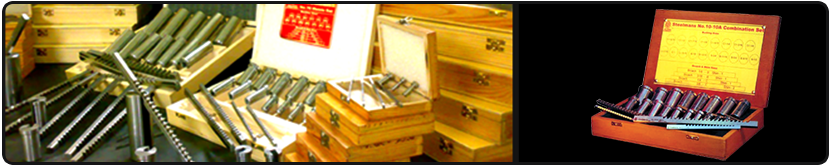

STANDARD BROACH SETS
|
|
| Steelmans manufacture and export the complete range of :- |
- HSS Standard & Metric Broach Sets
- HSS Standard Keyway Individual Broaches, Bushings & Shims
- Metric Keyway Broaches, Bushings and Shims
- HSS Standard Production, One Pass Keyway and Keyseating Broaches
- Standard and Metric Square Broaches
- Standard and Metric Hexagon Broaches
- Standard Round / Bore Finish Broaches
|
|
1. Steelmans Broach sets are packed in extra large, polished wooden boxes.
2. Broaches are manufacture of the finest quality high speed steel M2 grade.
3. All bushings are provided with complete grinding finish and polished.
4. Shims manufactured with high quality steel.
5. Above all, Steelmans, offers lowest best international rates!
6. Ask for the Price List
|
|
Broach Sets |
Keyway Individual Broaches |
Bushing & Shims |
Production & 1 Pass Broaches |
| Keyseating Broaches |
Square Broaches |
Hexagon Broaches |
Round Broaches |
| |
HSS STANDARD BROACH SETS
|
|
|
NO. 00 PRECISION SET STEELMANS NO. 0003 |
|
Keyway Size Diameters |
Broach Style |
Bushing |
|
1/16 |
A |
|
|
3/32 |
A |
1/4, 5/16 |
|
1/8 |
A |
3/8,7/16,1/2 |
|
Collared Bushings Only |
|
|
NO. 10 STANDARD SET STEELMANS NO. 0012 |
|
Keyway Size Diameters |
Broach Style |
Bushing |
|
1/8,3/16 |
B |
1/2,5/8,3/4,7/8 |
|
1/4,3/8 |
C |
1,1-1/8,1-1/4, |
|
|
|
1-3/8,1-1/2 |
|
Collared Bushings Only |
|
| |
|
|
NO. 10A STANDARD SET STEELMANS NO. 0030 |
|
Keyway Size Diameters |
Broach Style |
Bushing |
|
1/8,3/16 |
B |
9/16,11/16,13/16 |
|
1/4,3/8 |
C |
15/16,1-1/16, |
|
|
|
1-3/16,1-5/16, |
| |
|
1-7/16,1-9/16 |
|
Collared Bushings Only |
|
|
No. 30 SET STEELMANS NO. 0039 |
|
Keyway Size Diameters |
Broach Style |
Bushing |
|
1/8 |
B |
1/2,5/8,3/4 |
|
3/16 |
C |
7/8,1,1-1/8, |
|
1/4 |
C |
1-1/4,1-3/8, |
| |
|
1-1/2 |
|
Collared Bushings Only |
|
| |
|
|
NO. 10-10A COMBINATION SET STEELMANS NO. 0075 |
|
Keyway Size Diameters |
Broach Style |
Bushing |
|
1/8 |
B |
1/2,9/16,5/8,11/16 |
|
3/16 |
B |
3/4,13/16,7/8 |
|
1/4 |
C |
15/16,1,1-1/16,1-1/8, |
|
3/8 |
C |
1-3/16,1-1/4,1-5/16,1-3/8, |
| |
|
1-7/16,1-1/2,1-9/16 |
|
Collared Bushings Only |
|
|
NO. 30A SET STEELMANS NO. 0048
|
|
Keyway Size Diameters |
Broach Style |
Bushing |
|
1/8 |
B |
9/16,11/16,13/16 |
|
3/16 |
B |
3/4,13/16,7/8 |
|
1/4 |
C |
15/16,1 |
|
Collared Bushings Only |
|
| |
|
|
NO. 40-A SET STEELMANS NO. 0120 |
|
Keyway Size Diameters |
Broach Style |
Bushing |
|
5/16 |
D |
1-7/16,1-9/16, |
|
3/8 |
D |
1-11/16,1-13/16, |
|
7/16 |
D |
1-15/16,2-3/16, |
|
1/2 |
D |
2-7/16,2-15/16 |
|
Plain Bushings Only |
|
|
NO. 40 SET STEELMANS NO. 0138 |
|
Keyway Size Diameters |
Broach Style |
Bushing |
|
5/16 |
D |
1-7/16,1-9/16, |
|
3/8 |
D |
1-11/16,1-13/16, |
|
7/16 |
D |
1-15/16,2-3/16, |
|
1/2 |
D |
2-7/16,2-15/16 |
|
Plain Bushings Only |
|
| |
|
|
NO. 40-1/2A HEAVY DUTY SET STEELMANS NO. 0147 |
|
Keyway Size Diameters |
Broach Style |
Bushing |
|
5/8 |
E |
2-3/8,2-1/2,2-5/8, |
|
3/4 |
E |
2-3/4,2-7/8,3 |
|
Plain Bushings Only |
|
|
NO. 40-1/2 HEAVY DUTY SET STEELMANS NO. 0156
|
|
Keyway Size Diameters |
Broach Style |
Bushing |
|
5/8 |
E |
2-5/16,2-7/16,2-9/16, |
|
3/4 |
E |
2-11/16,
2-13/16,2-15/16 |
|
Plain Bushings Only |
|
| |
|
|
NO. 50 SET STEELMANS NO. 0156-III |
|
Keyway Size Diameters |
Broach Style |
Bushing |
|
1/2 |
D |
2,2-1/16,2-1/8,2-3/16,2-1/4 |
|
5/8 |
E |
2-5/16,2-3/8,2-7/16,2-1/2, |
|
3/4 |
E |
2-9/16,2-5/8,2-11/16,2-3/4 |
|
3/4 |
E |
2-13/16,2-7/8,2-15/16,3 |
|
Plain Bushings Only |
|
|
| |
|
|
|
|
|
|

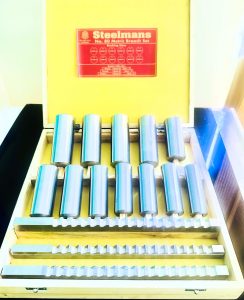

No.60 METRIC SET STEELMANS NO. 0165 |
|
Keyway Size |
Broach Style |
Bushing Diameters |
|
2MM |
A |
6,8,10 |
|
3MM |
A |
|
|
Collared Bushings Only |
|
|
No.70 METRIC SET STEELMANS NO. 0174 |
|
Keyway Size |
Broach Style |
Bushing Diameters |
|
4MM |
B-1 |
12,14 |
|
5MM |
B-1 |
15,16 |
|
6MM |
C-1 |
18.19.20.22 |
|
8MM |
C-1 |
24,25,26,28.30 |
|
Collared Bushings Only |
|
|
|
|
|
No.80 METRIC SET STEELMANS NO. 0183 |
|
Keyway Size |
Broach Style |
Bushing Diameters |
|
10MM |
D-1 |
32,34,35,36 |
|
12MM |
D-1 |
38,40,42,44 |
|
14MM |
D-1 |
45,46,48,50 |
|
Collared Bushings Only |
|
|
No.90 METRIC SET STEELMANS NO. 0192 |
|
Keyway Size |
Broach Style |
Bushing Diameters |
|
16MM |
E-1 |
52,54,55,56 |
|
18MM |
E-2 |
58,60,62,65 |
|
Collared Bushings Only |
|
|
|
|
|
|
